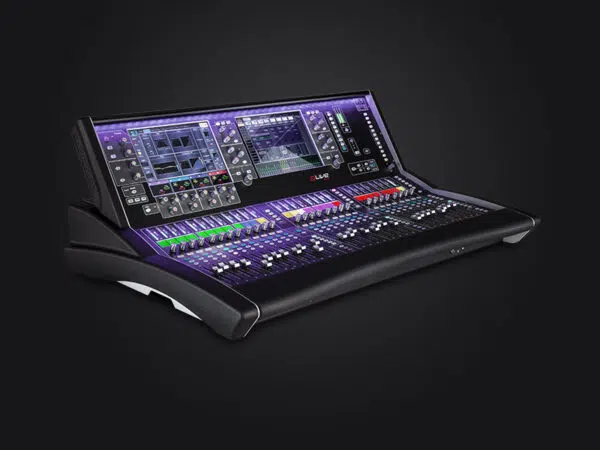

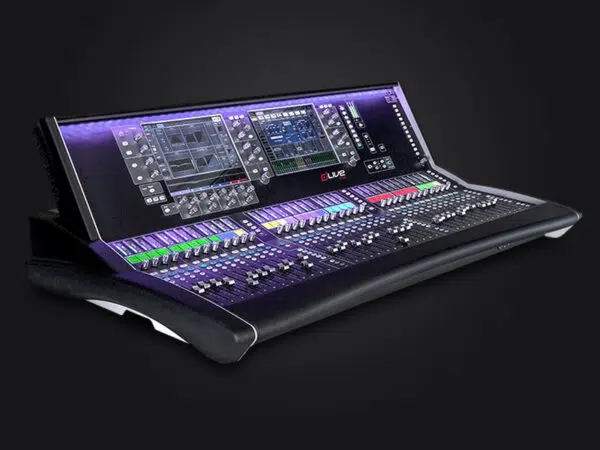

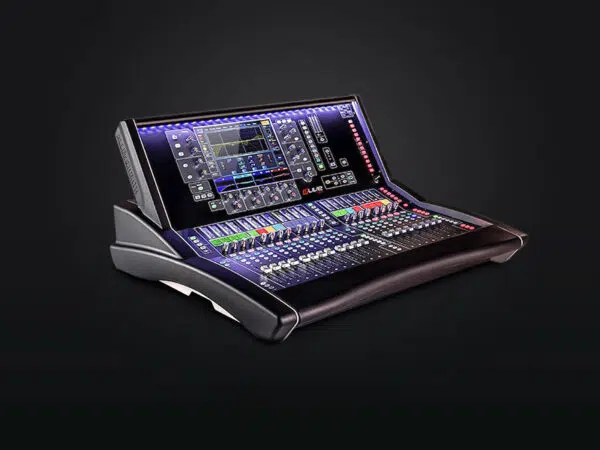

S Class Surfaces
gigaACE link to MixRack (dual redundant)
DX link for I/O expansion (dual redundant)
2 I/O Ports – 128ch 96kHz each
2 Network ports
Wordclock BNC I/O
Video output
8 Mic/line inputs
8 Line outputs
2 Digital st AES3 input
3 Digital st AES3 output
Dedicated Preamp & Filter controls
26 Assignable SoftKeys
Hot-swappable PSU (dual redundant option)
3 Year Warranty

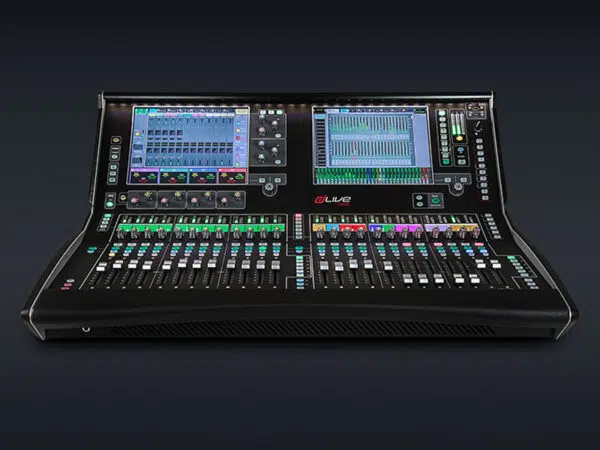

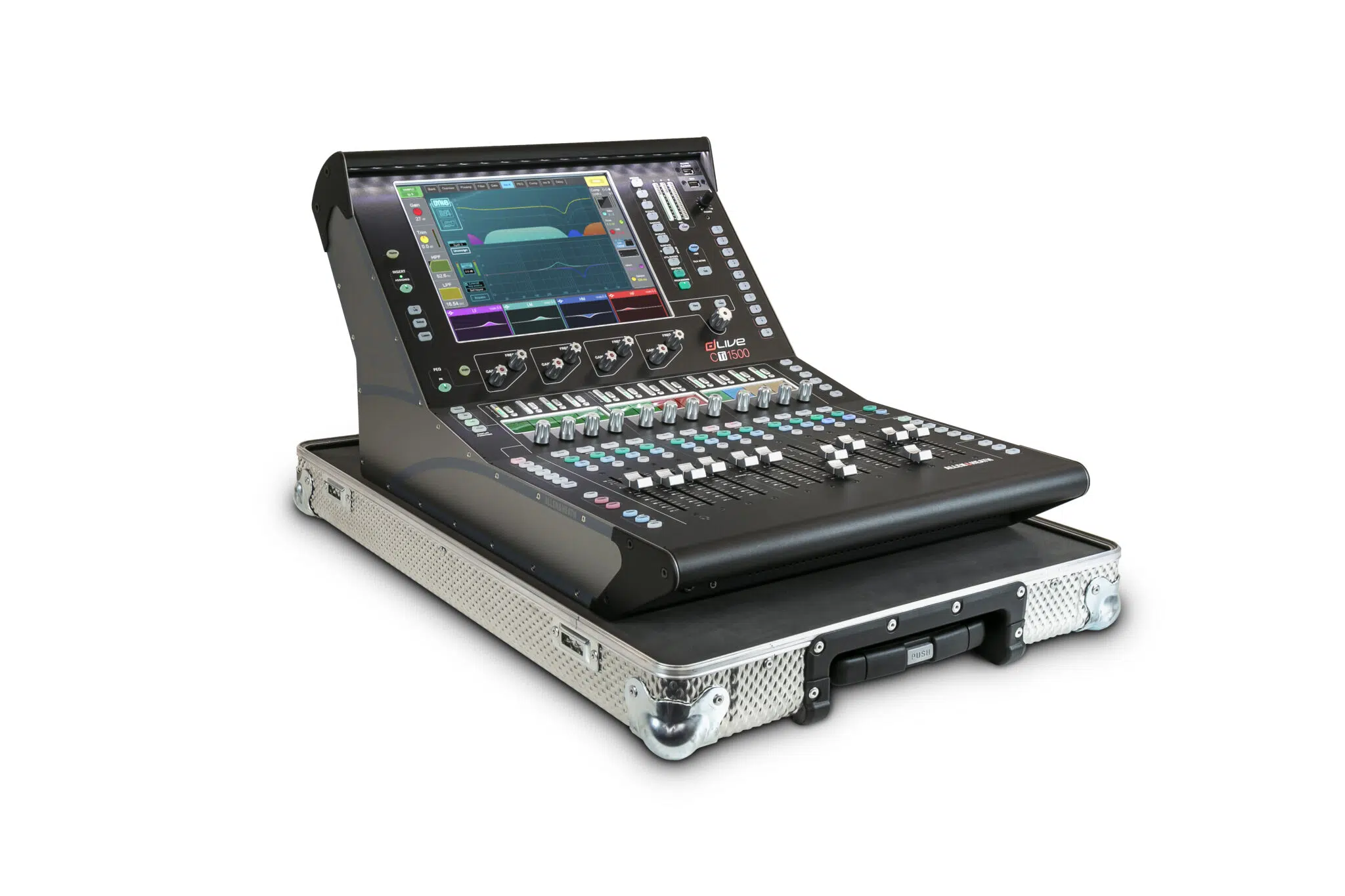

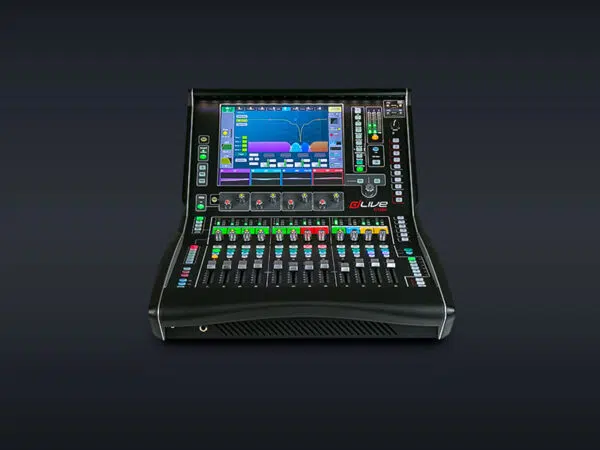

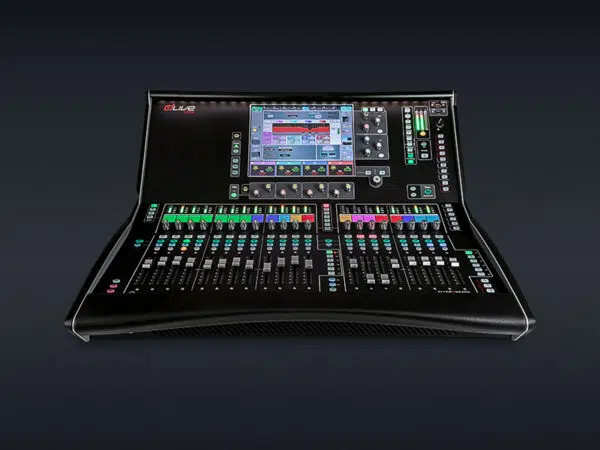

C Class Surfaces
gigaACE link to MixRack
DX link for I/O expansion
I/O Port – 128ch 96kHz
2 Network ports
Wordclock BNC I/O
Video output
6 Mic/line inputs
6 Line outputs
1 Digital st AES3 input
1 Digital st AES3 output
19 Assignable SoftKeys
Integrated PSU
