XCVI 160×64 FPGA core
- 96kHz sample rate
- Variable bit-depth for ultimate precision and noise performance
- Virtually infinite mix headroom thanks to 96bit accumulator
- Class-leading, ultra-low latency < 0.7ms
128 Input Channels with full processing
64 Mix Outputs with full processing
Configurable 64-bus architecture (group, FX, aux, matrix, mains)
- LR, LCR and up to 5.1 mains mode
- Multiple PFLs
8 RackUltra FX with dedicated stereo sends, returns and pre/post processing
16 RackExtra FX with dedicated stereo returns
24 DCAs
AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
Built-in signal generator and RTA
New preamp design for extra transparency
Unique Active PAD circuit for consistent performance with any source
Reversible rack ears design
Flush front panel with ultra-quiet fan

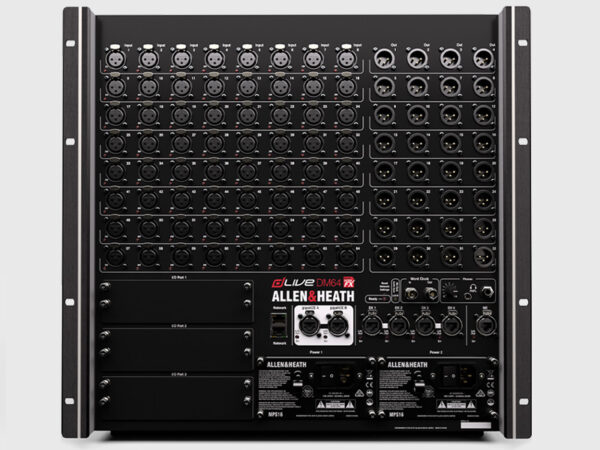

DM64
64 mic/line inputs
32 line outputs
3 I/O Ports
Redundant Surface Link
Redundant DX Links
Redundant PSU (optional)
DM48
48 mic/line inputs
24 line outputs
3 I/O Ports
Redundant Surface Link
Redundant DX Links
Redundant PSU (optional)

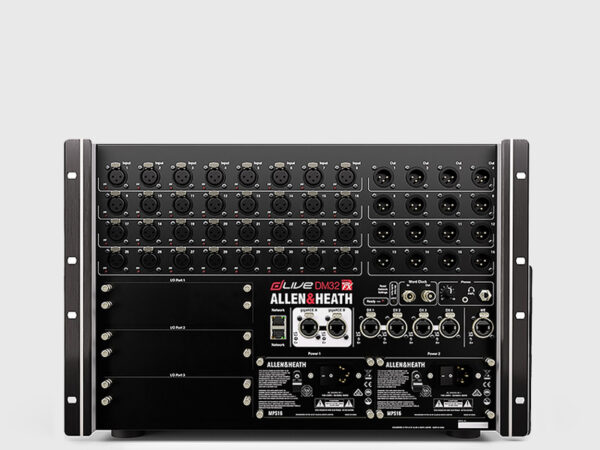

DM32
32 mic/line inputs
16 line outputs
3 I/O Ports
Redundant Surface Link
Redundant DX Links
Redundant PSU (optional)

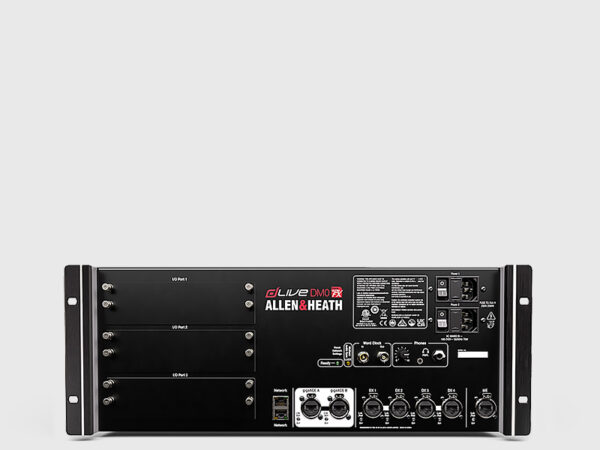

DM0
0 mic/line inputs
0 line outputs
3 I/O Ports
Redundant Surface Link
Redundant DX Links
Redundant PSU
CDM64
64 mic/line inputs
32 line outputs
1 I/O Port

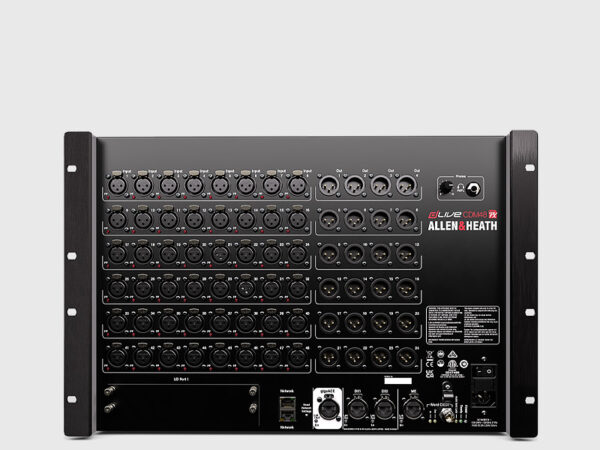

CDM48
48 mic/line inputs
24 line outputs
1x I/O Port

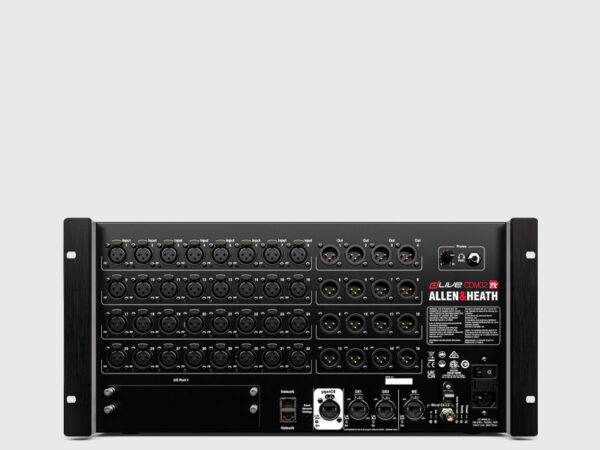

CDM32
32 mic/line inputs
16 line outputs
1x I/O Port
S Class MixRacks
gigaACE link to Surface (dual redundant)
2 DX links for I/O expansion (dual redundant)
3 I/O Ports – 128ch 96kHz each
Dedicated ME-1 48kHz port
2 Network ports
Wordclock BNC I/O
Add up to 28 DX I/O expanders via DX Hub modules or DX Link cards
Add up to 4 dLive Surfaces
– 1 via integrated gigaACE socket
– 3 via optional gigaACE cards
Hot-swappable PSU (dual redundant option)
3 Year Warranty
C Class MixRacks
gigaACE link to Surface
2 DX links for I/O expansion
1 I/O Port – 128ch 96kHz
Dedicated ME-1 48kHz port
2 Network ports
Wordclock BNC I/O
Add up to 12 DX I/O expanders via DX Hub modules or DX Link cards
Add up to 2 dLive Surfaces
– 1 via integrated gigaACE socket
– 1 via optional gigaACE card
Integrated PSU
